ไฮไลท์
Hardware-Based FHD Controller
VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

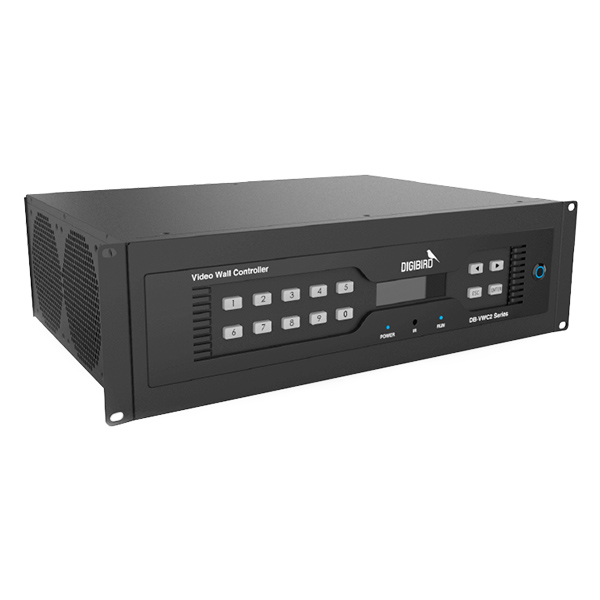

Hardware-based FHD Video Wall Controller
The industries best-choice video wall controller

Live Preview
With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation.

Compatible with CCTV
Supports arbitrary layering, zooming in/out, stretching and picture in picture. Compatible with IPC camera to display stream directly to video wall.

Dual Control Cards
Auto switching backup, keep operating without any interruption. Keep running the current preset even both cards breaking down or swapped out.

Unmatched Performance
Applied stepless zooming, vertical sync and 4:4:4 processing, VWC2-M4 has industry leading performance to offer visually loseless experience.

Specified User Access
Administrator is capable to authorize certain users specific access for video wall management, i.e. specific input, display area and functions, etc.

Status Monitoring
Real-time status monitoring: hardware info, firmware info, temperature, operating info and auto-adjusted fan speed, etc.

Specification
Size: Description: Input Cards Output Cards PSUs
3U 3U Chassis, up to 6x input cards, 2x output cards. 6 2 1+0
4U 4U Chassis, up to 8x input cards, 3x output cards. 8 3 1+1
6U 6U Chassis, up to 14x input cards, 5x output cards. 14 5 1+1
8U 8U Chassis, up to 15x input cards, 10x output cards. 15 10 1+1
14U 14U Chassis, up to 21x input cards, 18x output cards. 21 18 1+3
26U 26U Chassis, up to 42x input cards, 36x output cards. 42 36 1+3

Input Cards Resolution:
4 channels SL-DVI input card. Up to1920x1200/60Hz
2 channels 4K DL-DVI input card. Up to 3840×2160/30Hz
4 channels HDMI input card. Up to 1920×1200/60Hz
2 channels 4K HDMI input card. Up to 3840×2160/30Hz
4 channels DP input card. Up to 1920×1200/60Hz
2 channels 4K DP input card. Up to 3840×2160/30Hz
4 channels HDBT input card. Up to 1920×1200/60Hz
2 channels 4K HDBT input card. Up to 3840×2160/30Hz
4 channels SDI input card. Up to 1920×1080/60Hz
4 channels YPbPr input card. Up to 1920×1080/60Hz
4 channels VGA input card. Up to 1920×1200/60Hz
2 channels H.265 IP input card. Up to 4000×3000/25Hz
2 channels 4K H.265 IP input card. Up to 4000×3000/25Hz
4 channels Fiber HD input card. Up to 1920×1200/60Hz
2 channels Fiber 4K input card. Up to 3840×2160/30Hz
4 channels AVCNet input card Up to 1920×1200/60Hz
2 channels 4K AVCNet input card Up to 3840×2160/30Hz
8 channels audio input & output card
4 channels CVBS input card. Up to 720×480/720×576

Output Cards Resolution:
4 channels SL-DVI output card. Up to 1920×1200/60Hz
4 channels HDMI output card. Up to 1920×1200/60Hz
4 channels DP output card. Up to 1920×1200/60Hz
4 channels HDBaseT output card. Up to 1920×1200/60Hz
4 channels SDI output card. Up to 1920×1080/60Hz
4 channels HDMI output card. Up to 1920×1200/60Hz
1 channel 4K HDMI output card, 16 layers. Up to 3840×2160/30Hz
4 channels DVI output card. Up to 1920×1200/60Hz
4 channels J-series HDBaseT output card. Up to 1920×1200/60Hz
4 channels VGA output card. Up to 1920×1200/60Hz
1 channel IP output card. 1080P/30Hz
4 channels AVCNET output card. Up to 1920×1200/60Hz
1 channel IP Network Preview card. /

Function Cards
4 channels DVI Confidence Monitoring Card Up to 1920×1200/60Hz
Control Card /

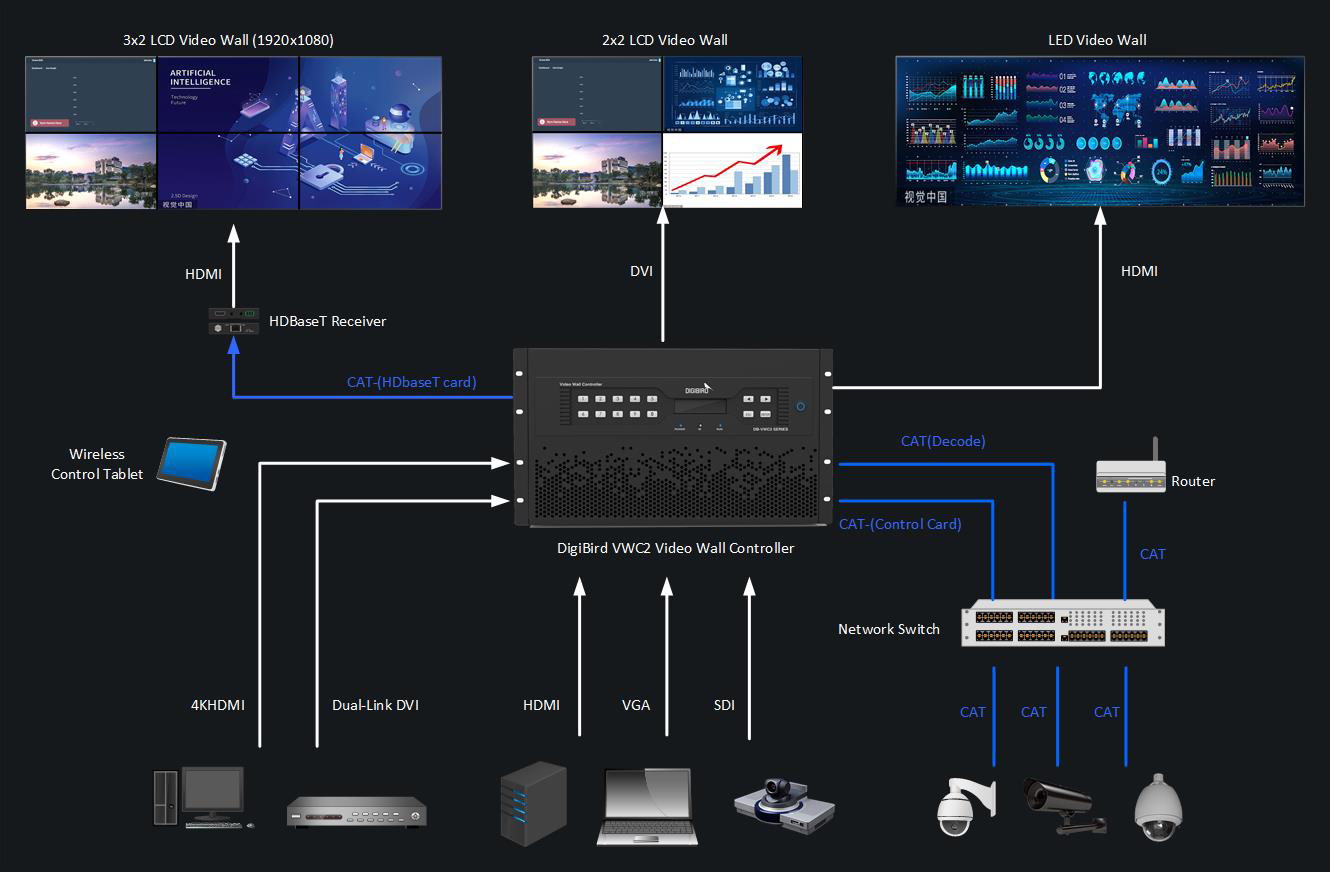

Diagram
