ไฮไลท์

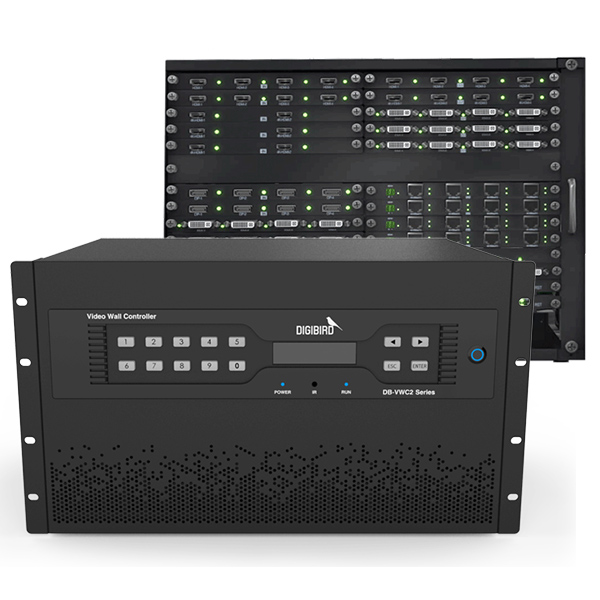

Hardware-based 4K Controller
To fulfill growing demand of UHD visual experience, DigiBird launched HPro series controller to deliver 4K/60Hz performance at 4:4:4. Same as other models, HPro is hardware-based controller as well without compromising reliability. Supports embedded audio and capacity to work as centralized controller make it outstanding within the industry.
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Genuine 4K/60 Video Wall Controller
More powerful than your expectations

Genuine 4K60 Experience
4k 60Hz processing at 4:4:4 to deliver 4K experience without any compromising.

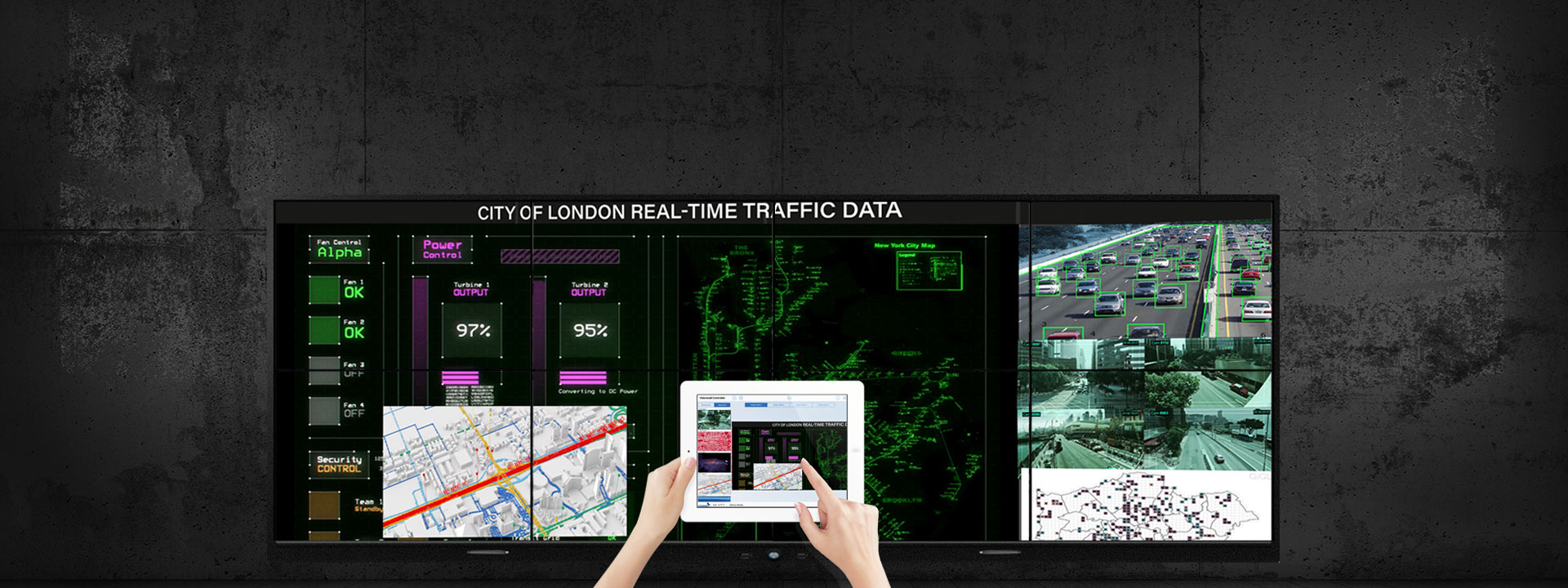

Live Preview
With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation.

Compatible with CCTV
Supports arbitrary layering, zooming in/out, stretching and picture in picture. Compatible with IPC camera to display stream directly to video wall.

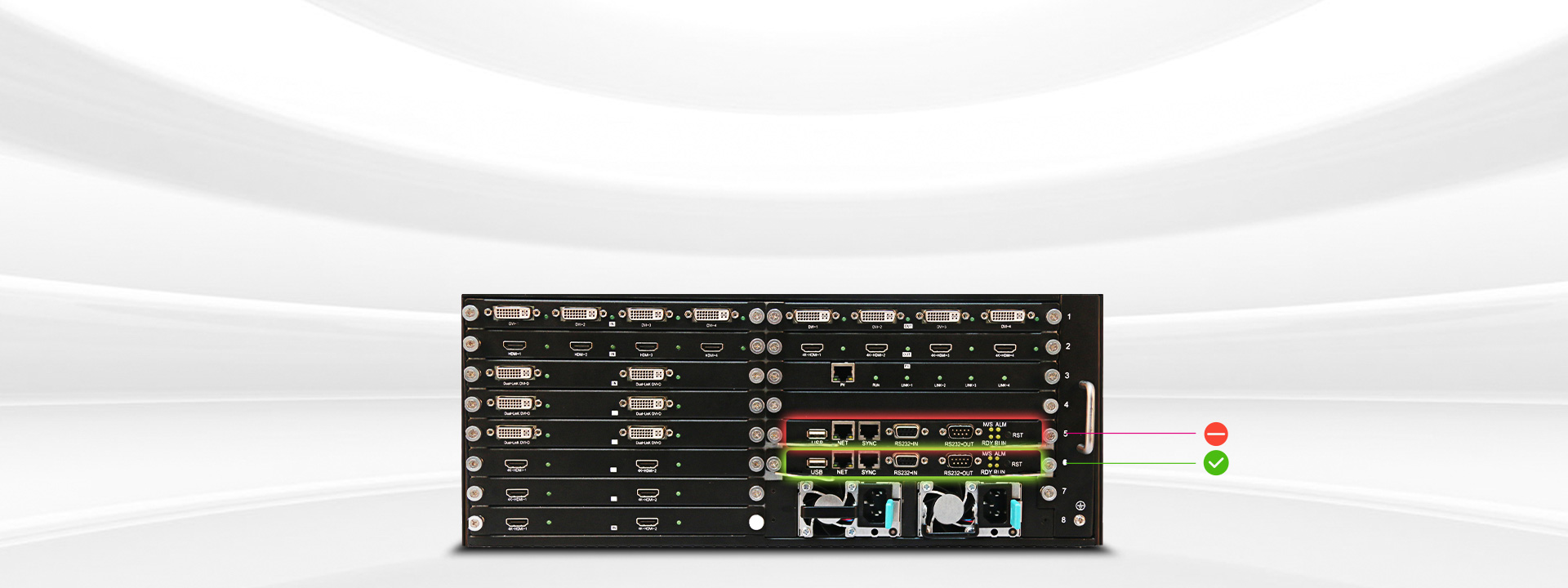

Dual Control Cards
Auto switching backup, keep operating without any interruption. Keep running the current preset even both cards breaking down or swapped out.

Specified User Access
Administrator is capable to authorize certain users specific access for video wall management, i.e. specific input, display area and functions, etc.

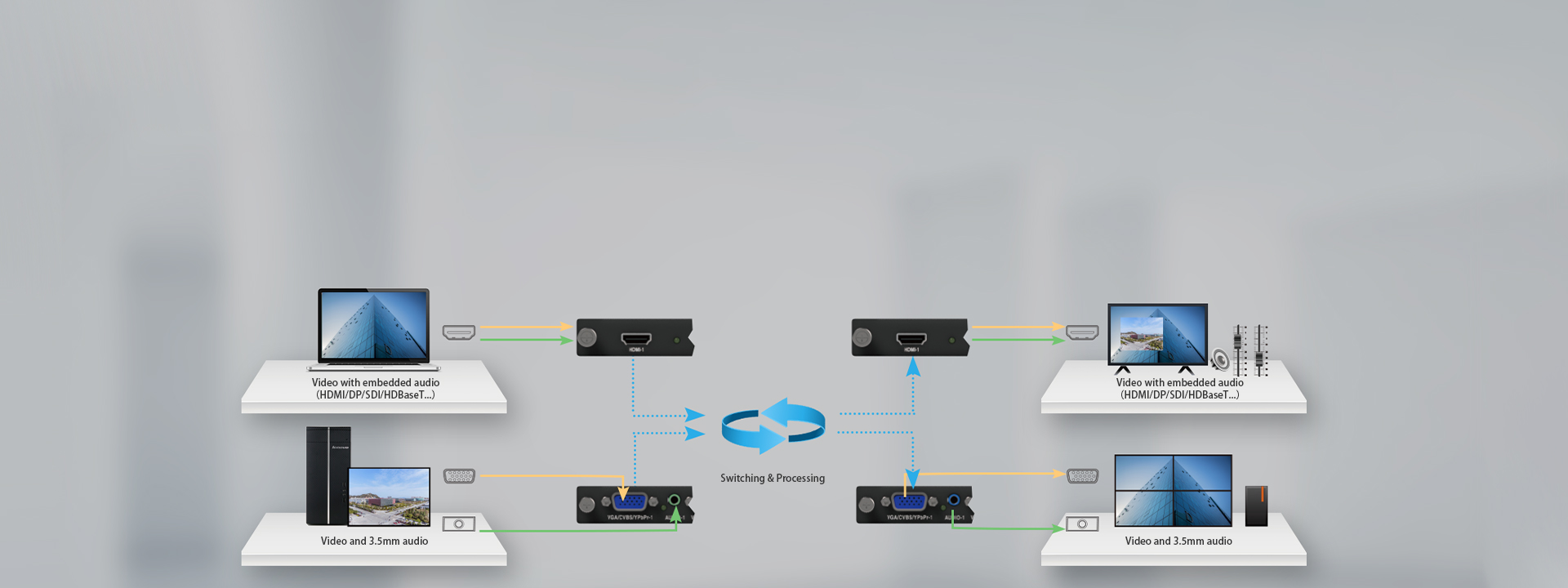

Audio Does Matter
HPro support embedded and de-embedded audio management. User is able to switch audio input and output, turn up/down volume and manage audio preset.

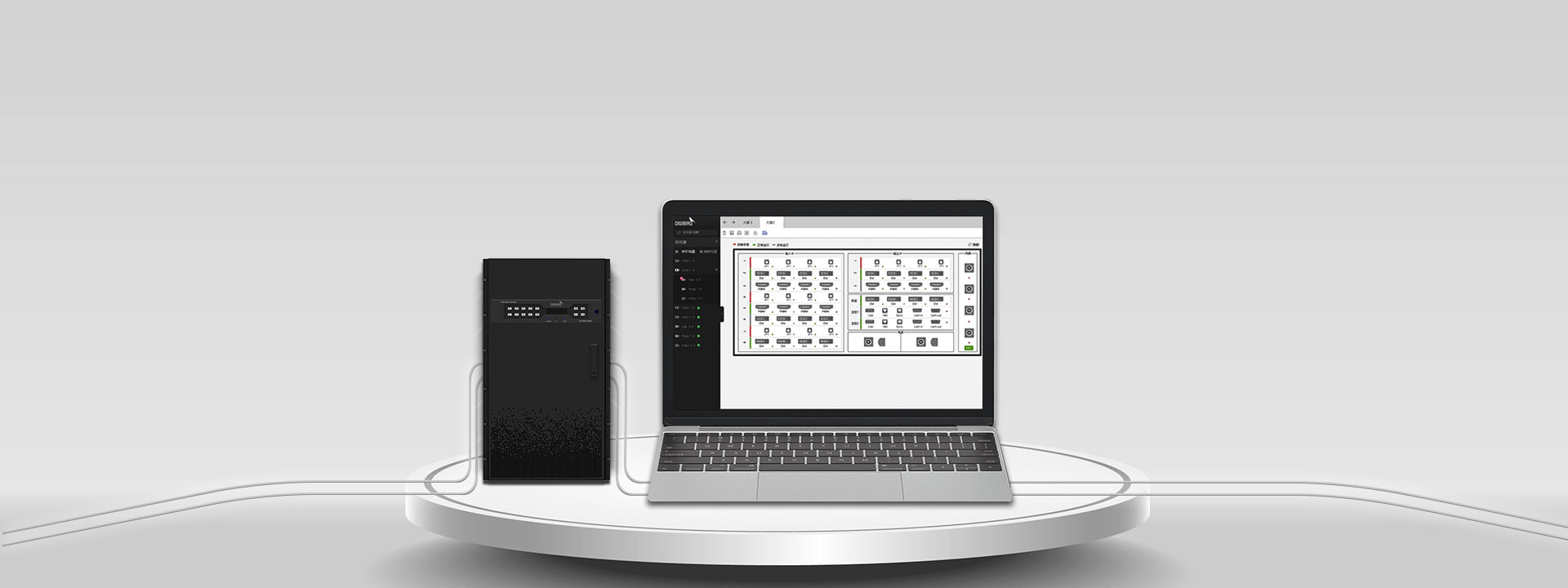

Status Monitoring
Real-time status monitoring: hardware info, firmware info, temperature, operating info and auto-adjusted fan speed, etc.

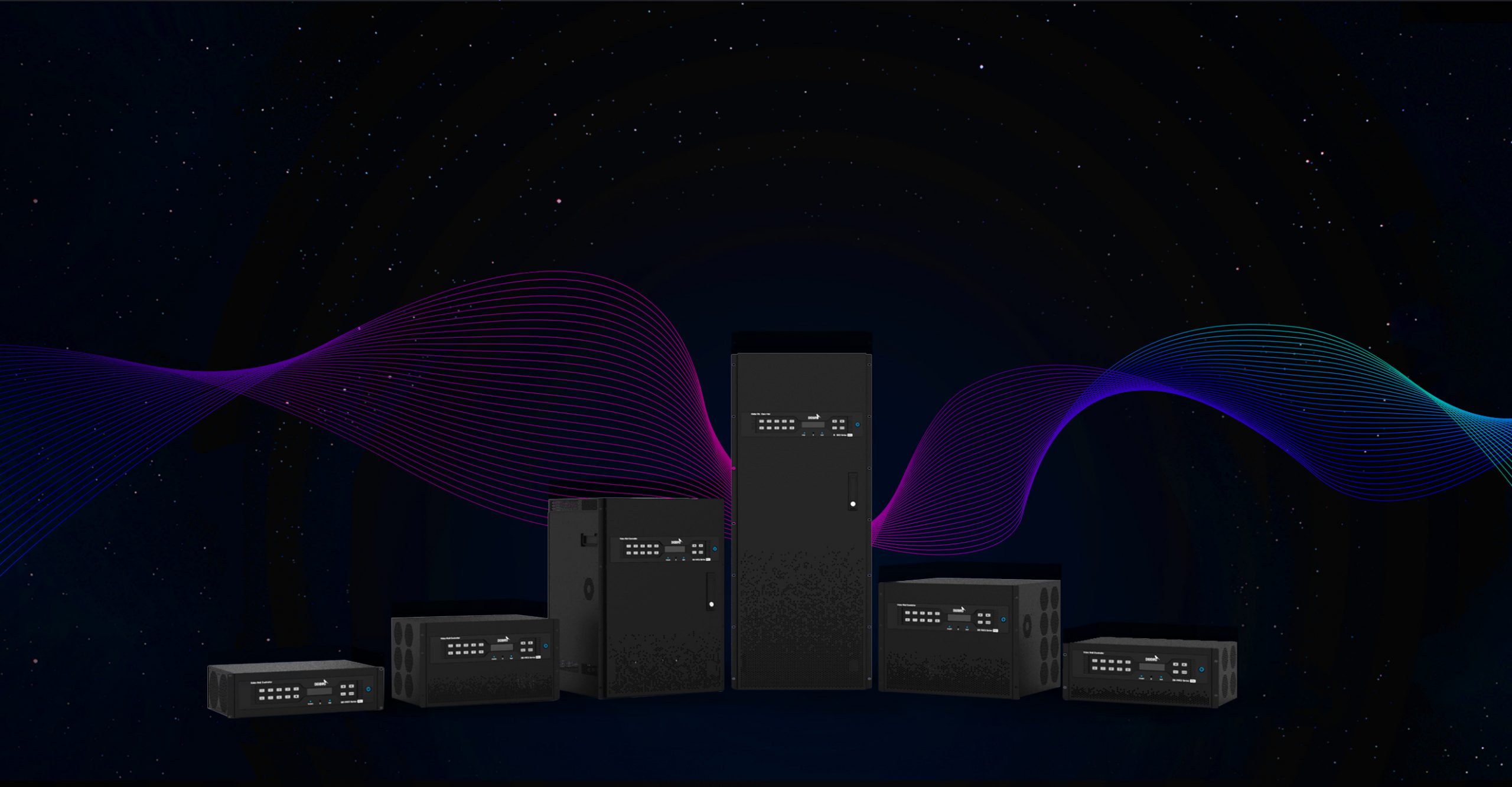

Specification
Size: Description: Input Cards Output Cards PSUs
3U 3U Chassis, up to 6x input cards, 2x output cards. 6 2 1+0
4U 4U Chassis, up to 8x input cards, 3x output cards. 8 3 1+1
6U 6U Chassis, up to 14x input cards, 5x output cards. 14 5 1+1
8U 8U Chassis, up to 15x input cards, 10x output cards. 15 10 1+1
14U 14U Chassis, up to 21x input cards, 18x output cards. 21 18 1+3
26U 26U Chassis, up to 42x input cards, 36x output cards. 42 36 1+3

Input Cards Resolution:
4 channels SL-DVI input card. Up to1920x1200/60Hz
2 channels 4K DL-DVI input card. Up to 3840×2160/30Hz
4 channels HDMI input card. Up to 1920×1200/60Hz
2 channels 4K HDMI input card. Up to 3840×2160/30Hz
1 channel HDMI 4K60 input card. Up to 3840×2160/60Hz
4 channels DP input card. Up to 1920×1200/60Hz
2 channels 4K DP input card. Up to 3840×2160/30Hz
4 channels HDBT input card. Up to 1920×1200/60Hz
2 channels 4K HDBT input card. Up to 3840×2160/30Hz
4 channels SDI input card. Up to 1920×1080/60Hz
4 channels YPbPr input card. Up to 1920×1080/60Hz
4 channels VGA input card. Up to 1920×1200/60Hz
2 channels H.265 IP input card. Up to 4000×3000/25Hz
2 channels 4K H.265 IP input card. Up to 4000×3000/25Hz
4 channels Fiber HD input card. Up to 1920×1200/60Hz
2 channels Fiber 4K input card. Up to 3840×2160/30Hz
2 channels 4K AVCNet input card Up to 3840×2160/30Hz
8 channels audio input & output card
4 channels CVBS input card. Up to 720×480/720×576

Output Cards Resolution:
4 channels SL-DVI output card. Up to 1920×1200/60Hz
4 channels HDMI output card. Up to 1920×1200/60Hz
4 channels 4K HDMI output card. Up to 3840×2160/30Hz
2 channels 4K60 HDMI output card. Up to 3840×2160/60Hz
4 channels DP output card. Up to 1920×1200/60Hz
4 channels 4K DP output card. Up to 3840×2160/30Hz
4 channels HDBaseT output card. Up to 1920×1200/60Hz
4 channels 4K HDBaseT output card. Up to 3840×2160/30Hz
4 channels SDI output card. Up to 1920×1080/60Hz
4 channels HDMI output card. Up to 1920×1200/60Hz
4 channels 4K HDMI output card. Up to 3840×2160/30Hz
2 channels 4K60 HDMI output card. Up to 3840×2160/60Hz
1 channel 4K HDMI output card, 16 layers. Up to 3840×2160/30Hz
4 channels DVI output card. Up to 1920×1200/60Hz
4 channels J-series HDBaseT output card. Up to 1920×1200/60Hz
4 channels J-series 4K HDBaseT output card. Up to 3840×2160/30Hz
4 channels VGA output card. Up to 1920×1200/60Hz
4 channels Video output card. Up to 720×480/720×576
4 channels 4K FIBER output card. Up to 3840×2160/30Hz
1 channel IP output card. 1080P/30Hz
4 channels AVCNET output card. Up to 1920×1200/60Hz
1 channel IP Network Preview card. /

Function Cards Resolution:
4 channels DVI Confidence Monitoring Card Up to 1920×1200/60Hz
Control Card /

Diagram
